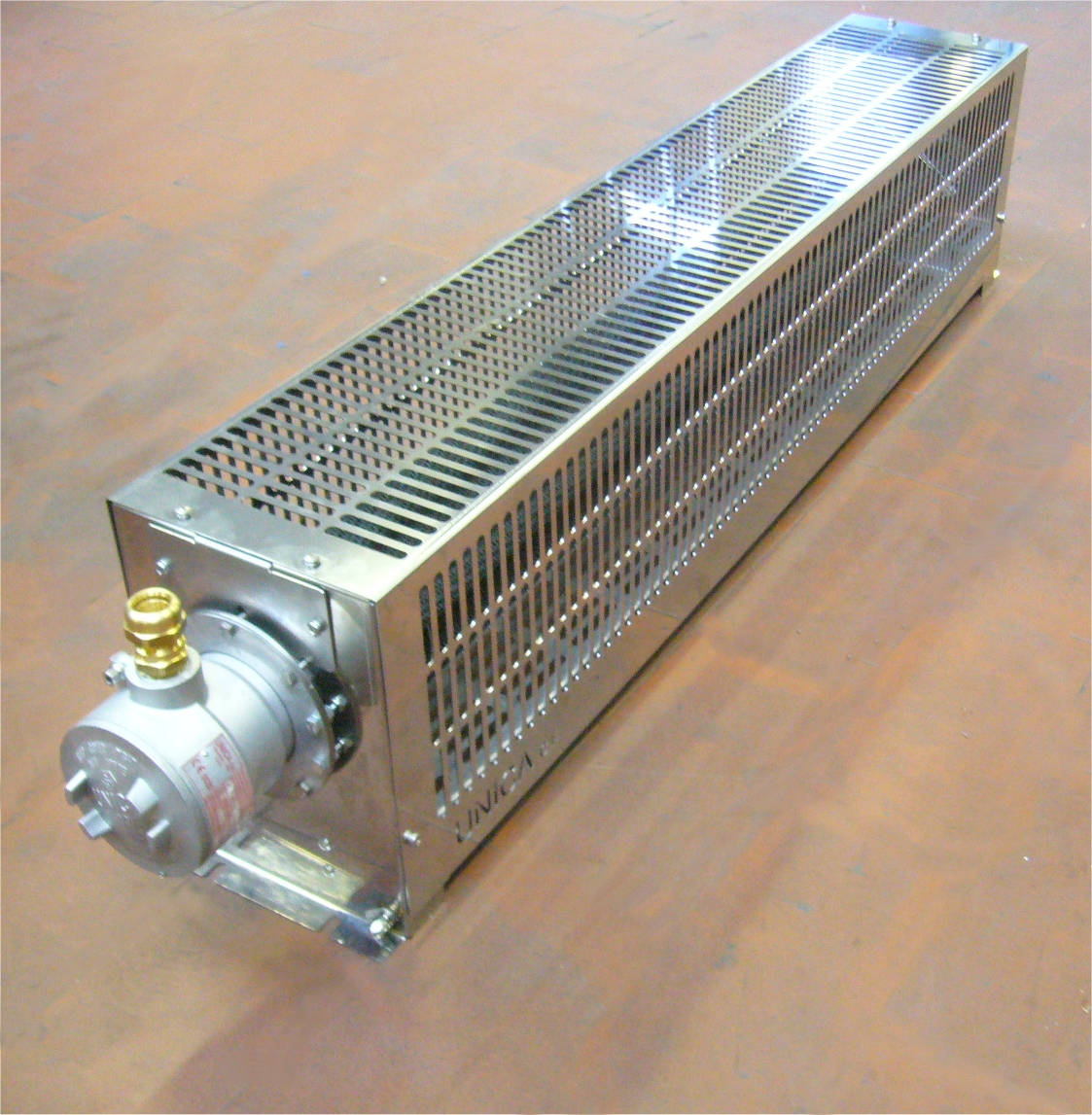

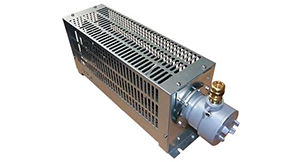

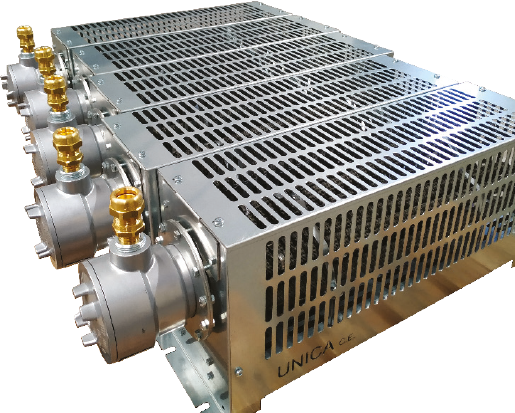

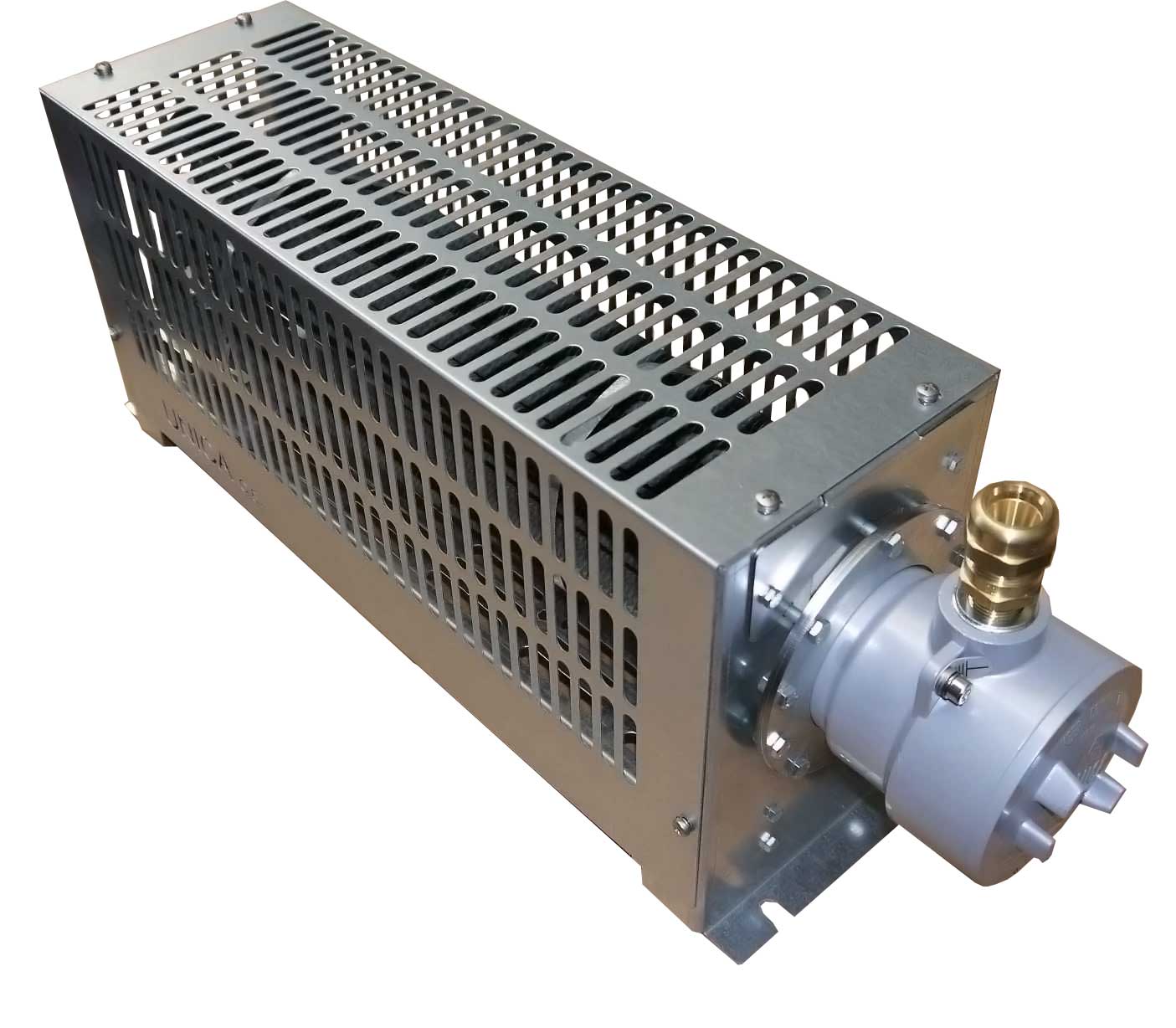

Static convector heaters ATEX series TCA
Our ATEX certified TCA series convector heaters are designed, assembled and tested at our facility. They are ideal for heating enclosed spaces with an explosive (gas and dust) atmosphere. The finned, low specific load heater, built in AISI 304, allows heating of environments where temperature is a critical factor. Product customization available (logo, size, wattage).
Ideal application fields: "OIL&GAS" cabins, painting booths, compressor cabins.
Technical characteristics
| Electrical enclosure | IP 65 — Certification CEC 13 ATEX 011 X |
|---|---|
| Heater | 1000 to 2000 W, single-phase 230V (three-phase available) |
| Mounting | Wall or floor mount |
| Thermocouple | Temperature up to T4, manual-reset max temperature safety |
| Protection type | II2G Ex de IIC T4/T1 Gb — II2D Ex tb IIIC T135°C/450°C Db |
| AC inlet | Gk 1" reduced to G ½ |
